Glycan Analysis Services - Level 2

This module is an extension of the Level 1 HILIC profiling work to gain more detailed information on the glycan structures and their relative proportions. This can be achieved by Exoglycosidase digestion followed by HILIC-UPLC and/or by HILIC-UPLC-FLR-ESI-MS/MS analyses.

Level 2 HILIC-UHPLC-FLR-ESI-MS/MS

A combination of the hydrophilic interaction ultrahigh performance liquid chromatography (HILIC-UPLC) and electrospray ionization mass spectrometry (ESI–MS) can greatly improve glycan analysis by providing specific structural information.

The stoichiometric attachment of one label per glycan allows the relative quantitation of different glycan species based on fluorescence (FLR) and the ESI-MS and MS/MS fragmentation data can provide composition and sequence data for each glycan.

This module is an extension of the Level 1 HILIC profiling work to gain more detailed information on the glycan structures and their relative proportions. This module provides HILIC-UHPLC-FLR profiles, ESI-MS/MS spectra, mass composition and sequence data matching glucose unit (GU) values, m/z and MS/MS sequencing data. The analysis will be performed on single or triplicate N- and/or O-glycan samples, released and fluorescently labelled under the Level 1 HILIC profiling module, alongside Ludger positive and negative controls, and system suitability standards.

This module is suitable for:

glycan assignment based on mass composition sequence data
quality control - profile comparisons to monitor known structures
monitoring batch to batch consistency
comparability studies

In order to gain more detailed information (such as monosaccharide type and linkage) and increase confidence in the glycan structures assignments and their relative proportions Level 2 Exoglycosidase digestion followed by HILIC-UPLC is recommended.

Sample types:

Released and fluorescently labelled N- and/or O-glycans released from:

Biopharmaceuticals: mAbs, glycoprotein hormones (e.g. follicle stimulating hormone (FSH) and erythropoietin (EPO), Fc fusion proteins, vaccines)
Cells: mammalian cell lines, bacterial cell components
Biological fluids, tissues and others
Glycoproteins set in SDS-gel (N-glycans only)
COVID-19 patient samples (e.g. plasma, tissues)
SARS-CoV-2 infected cell lines

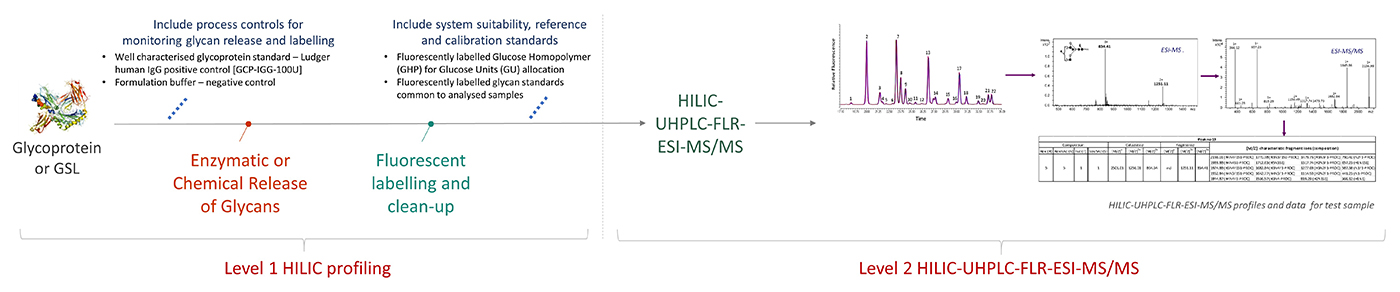

Workflow for Level 2 HILIC-UPLC-FLR-ESI-MS/MS

click to enlarge

Released and fluorescently labelled glycans (Level 1 HILIC profiling) are analysed by HILIC-UHPLC-FLR-ESI-MS/MS.

Report

Final report contains:

HILIC-UPLC profiles for system suitability standards and Ludger positive controls
HILIC-UPLC profiles for client samples and buffer negative controls
Glucose unit (GU) values
Mass composition data matching GU, m/z and MS/MS sequencing data
Proposed glycan structures and their relative proportions
Summary of findings (e.g. G0:G1:G2; % high mannose; % fucosylation)

Module Level 2 HILIC-UPLC-FLR-ESI-MS/MS has:

2 options for N-glycans characterisation to choose between:

G-L2-N-MSMS - Option 1: HILIC-UPLC-FLR-ESI-MS/MS analysis of the fluorescent labelled glycans- single sample analysis
G-L2-N-MSMS-t - Option 2: HILIC-UPLC-FLR-ESI-MS/MS analysis of the fluorescent labelled glycans- triplicate samples analysis

2 options for O-glycans characterisation to choose between:

G-L2-O-MSMS - Option 1: HILIC-UPLC-FLR-ESI-MS/MS analysis of the fluorescent labelled glycans- single sample analysis
G-L2-O-MSMS-t - Option 2: HILIC-UPLC-FLR-ESI-MS/MS analysis of the fluorescent labelled glycans- triplicate samples analysis

Relevant Application Note

Alpha-Gal-containing biologics

Relevant Posters

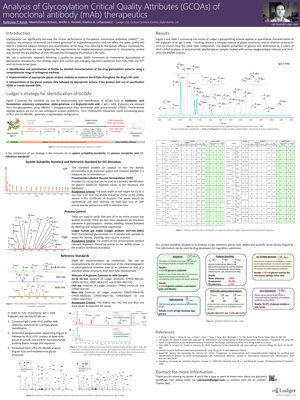

Analysis of Glycosylation Critical Quality Attributes (GCQAs) of monoclonal antibody (mAb) therapeutics

Kozak RP, Kotsias M, Hendel JL, Urbanowicz PA
Presented at: WCB 2019
Reston, USA. Nov 11-13th 2019

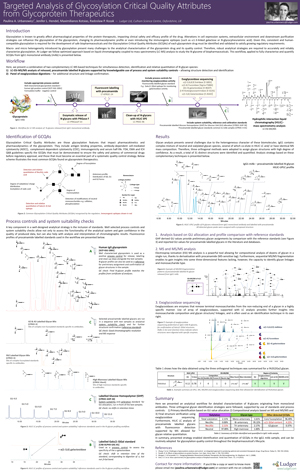

Targeted Analysis of Glycosylation Critical Quality Attributes from Glycoprotein Therapeutics

Urbanowicz PA, Hendel JL, Kotsias M, Kozak RP
Presented at: BioProduction 2019
Frankfurt, Germany. Nov 5-7th 2019

Ludger WCBP2018 FSH characterisation poster

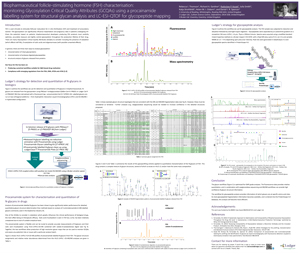

Biopharmaceutical follicle-stimulating hormone (FSH) characterisation: monitoring Glycosylation Critical Quality Attributes (GCQAs) using a procainamide labelling system for structural glycan analysis and LC-ESI-QTOF for glycopeptide mapping

Thomson RI, Gardner RA, Kozak RP, Smith J, Strohfeldt K, Osborn HMI, Spencer DI
Presented at:WCBP 2018: 22nd Symposium on the Interface of Regulatory and Analytical Sciences for Biotechnology Health Products
Washington D.C., United States. January 30-February 1st 2018

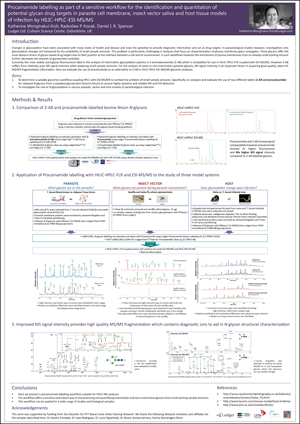

Procainamide labelling as part of a sensitive workflow for the identification and quantitation of potential glycan drug targets in parasite cell membrane, insect vector saliva and host tissue models of infection by HILIC-HPLC-ESI-MS/MS

Wongtrakul-Kish K, Kozak RP, Spencer D
Presented at the GlycoPar Symposium & Workshop
Liverpool, UK. September 12-14th 2016

Keywords: Procainamide, LC-MS, HILIC-HPLC-ESI-MS/MS, parasitic glycans, insect vector glycans, host glycans, GlycoPar

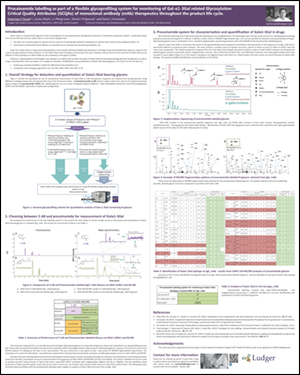

Procainamide labelling as part of a flexible glycoprofiling system for monitoring of Gal-a1-3Gal related Glycosylation Critical Quality Attributes (GCQAs) of monoclonal antibody (mAb) therapeutics throughout the product life cycle
